CCL belt conveyor system

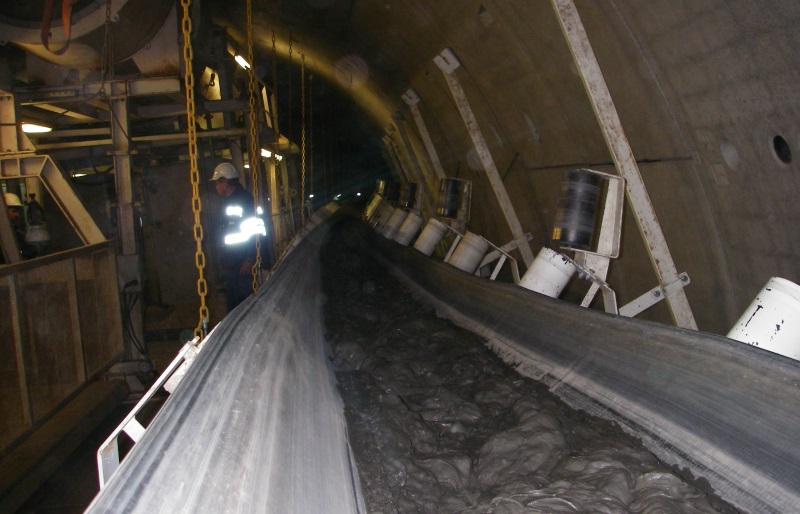

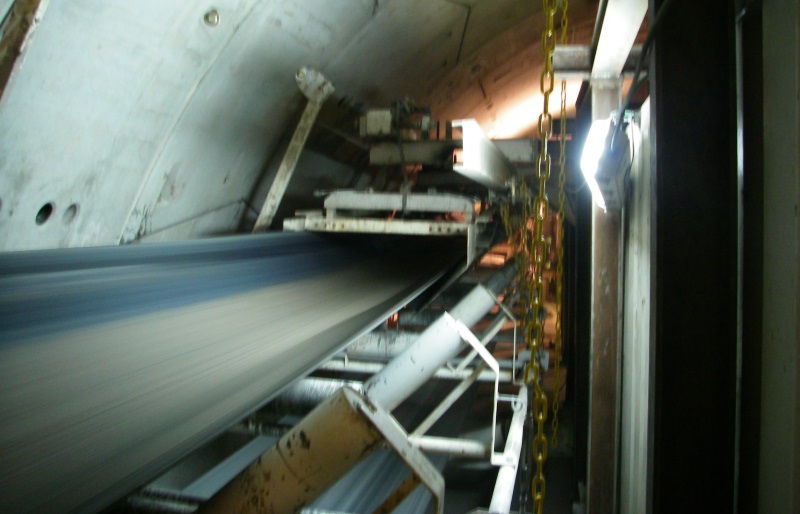

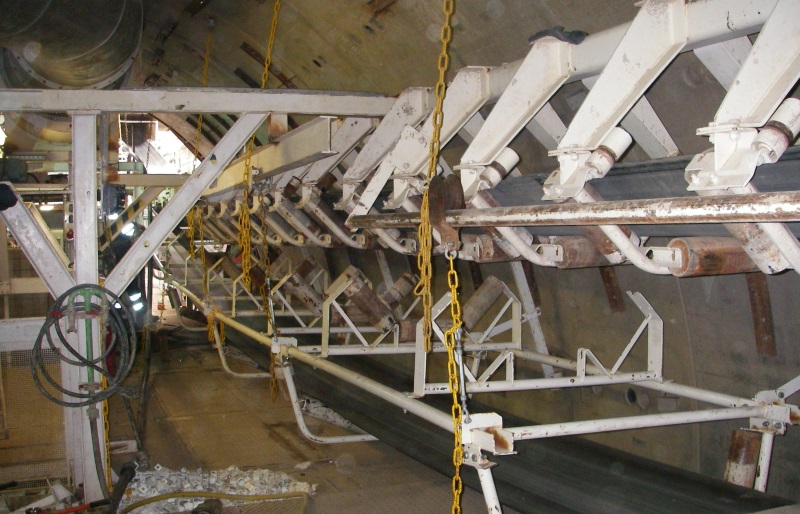

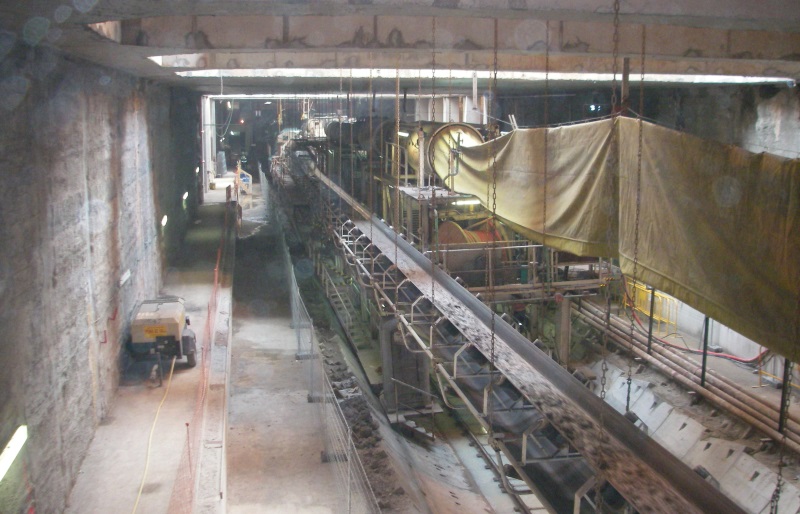

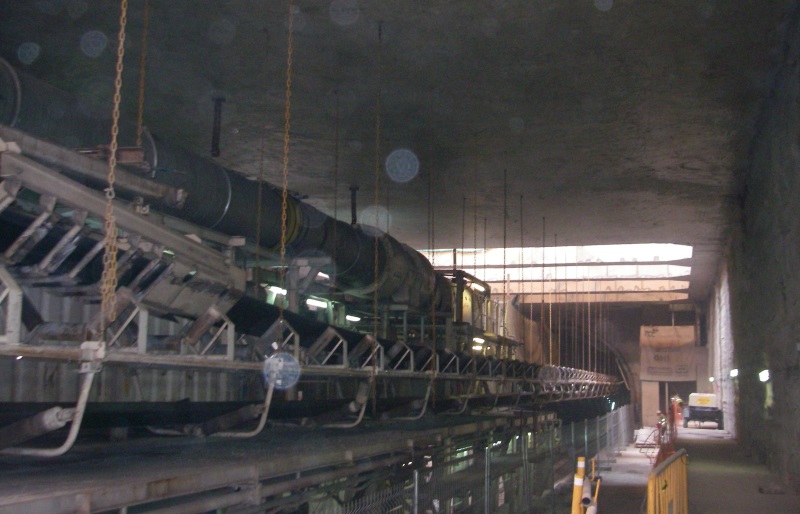

Complete belt conveyor system consisting in control cabin, main drive, storage cassette and tension unit, 2 units of tunnel booster, tail-end for TBM, tunnel conveyor structures and belt.

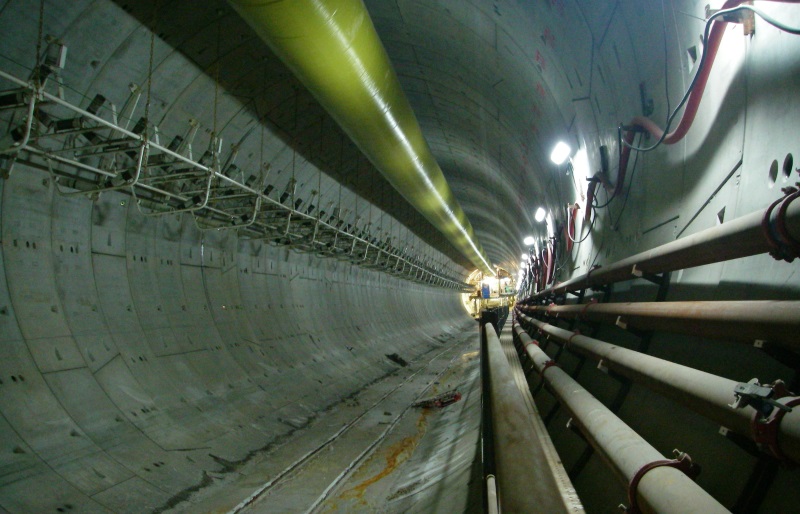

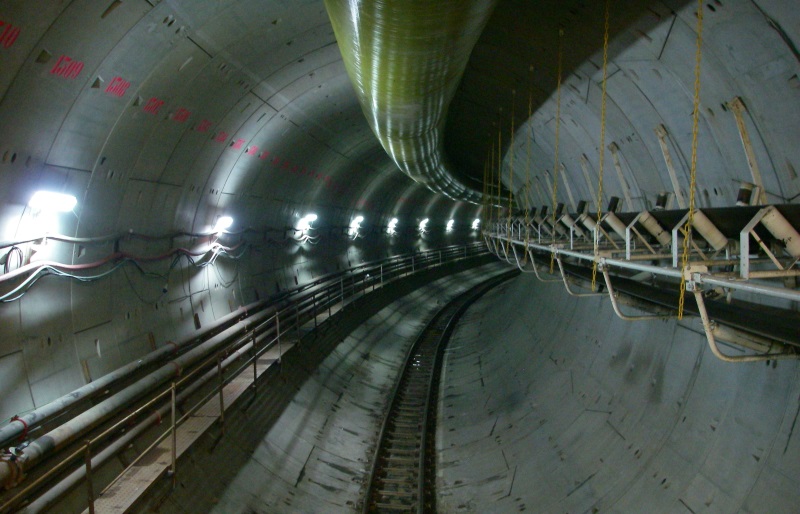

The conveyor has been used for excavate mixed material, in an urban tunnel for metro with curves up to 280 meter radius, where the length of rings is 1,8 meters.
The main components and the belt are in good condition.
|manufacturer||CONTINENTAL CONVEYOR LTD|
|length of conveyor||3.700 meters|
|belt width||1.000 mm|
|type of belt||ST500 6+4|
|nr of main drive motors / power||1 motor 350 kW|
|nr of booster motors / power||Each booster has 1 motor 350 kW|

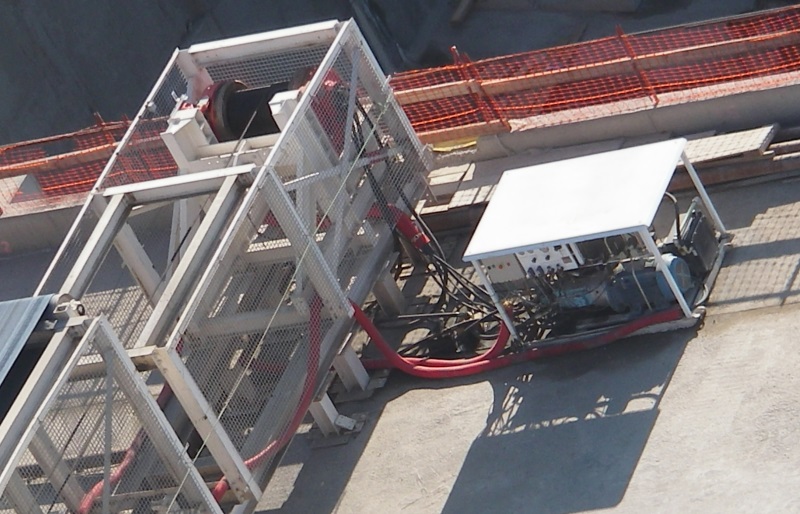

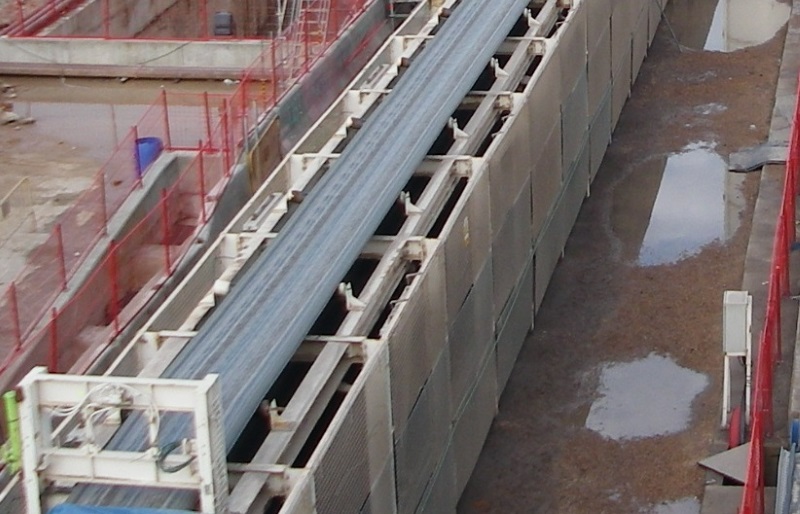

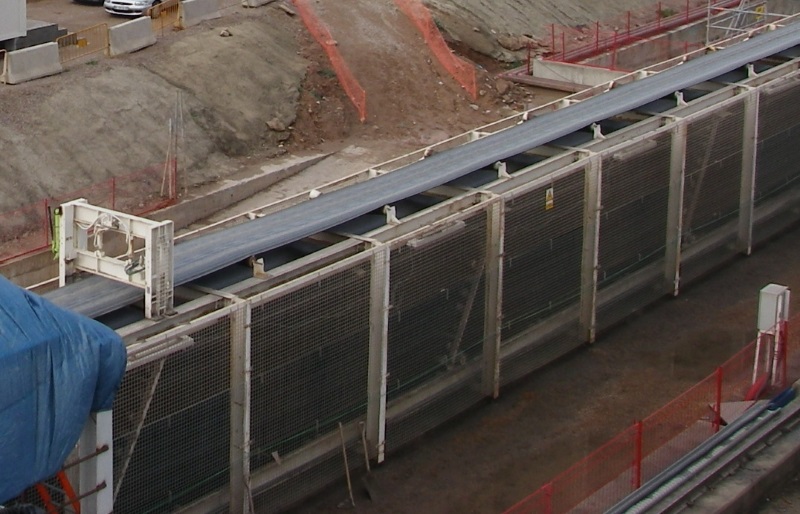

|capacity of storage cassette / type||500 meters / horizontal|

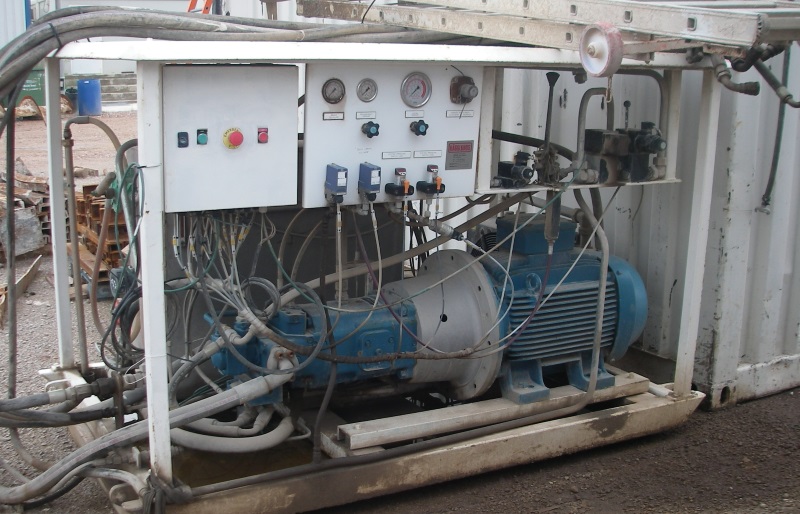

|tension system of conveyor||hydraulic winch|
|diameter of rollers (idler / return)||133 mm / 133 mm|
